Description
| Order Code | |||||||
|---|---|---|---|---|---|---|---|
| ESC | 50x50 | 2S | S | ||||
| Series | Stroke | Piston Rod | Magnet | ||||
| Standard Double Acting Type | Bore x Stroke | Blank: Single Rod 2S: Double Rod |
Blank: Without Magnet S: With Magnet |
||||
| Technical Parameters | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 |
| Standard Stroke length (mm) | 50,100,200,300,400,500, 600,700,800,900,1000 |
|||||||||
| Action | Double Acting Type | |||||||||
| Medium | Filtered and Lubricated Compressed Air | |||||||||
| Operating Pressure Range | 1-10 kgf/cm2 | |||||||||
| Proof Pressure | 15 kgf/cm2 | |||||||||
| Ambient and Medium Temp. | -5 to 70oC | |||||||||
| Operating Piston Speed | 50 - 800 mm/s | |||||||||
| Cushioning Type | Adjustable Cushioning Both End | |||||||||
| Cushion Stroke | 24 | 32 | 45 | |||||||
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" | ||||

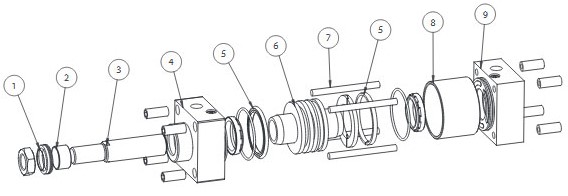

Components
- Piston Rod Seal - NBR
- Guide Bush - Brass
- Piston Rod - EN8, Chrome Plated Steel or Stainless Steel
- Front Cup - Anodised Aluminium Alloy
- Piston Seal - NBR
- Piston - Aluminium
- Tie Rod - MS, Nickel Plated
- Barrel - Aluminium Alloy
- Rear Cup - Anodised Aluminium Alloy
